4x Sensors THINKCAR THINKTPMS S1 Tyre Pressure System TPMS

THINKTPMS S1 sensor helps to monitor tire pressure and temperature. It helps you know the situation of four tires and prompts you to take in-time actions to prevent puncture and damage to car parts caused by flat tires. It also helps prevent flat tires, forecast leakage, reduce tire wire, prolong tire life, improve fuel efficiency and increase traffic safety.

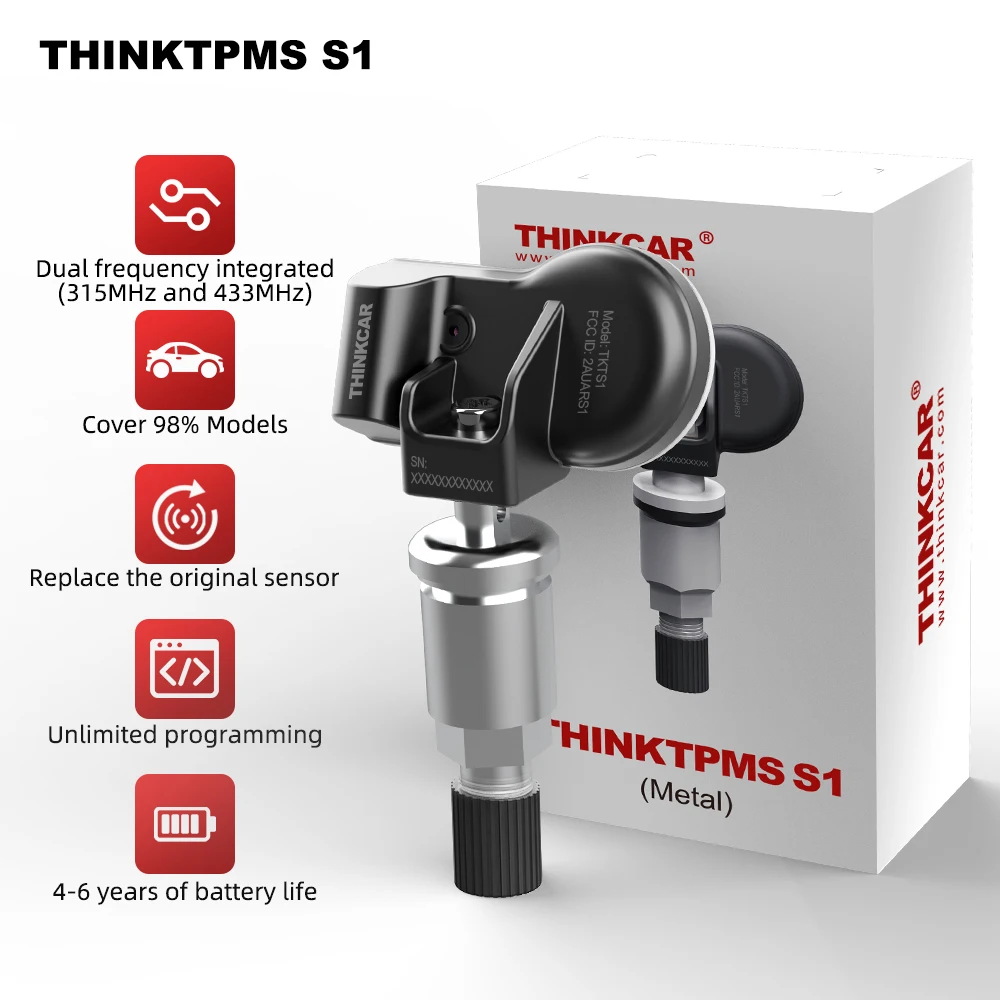

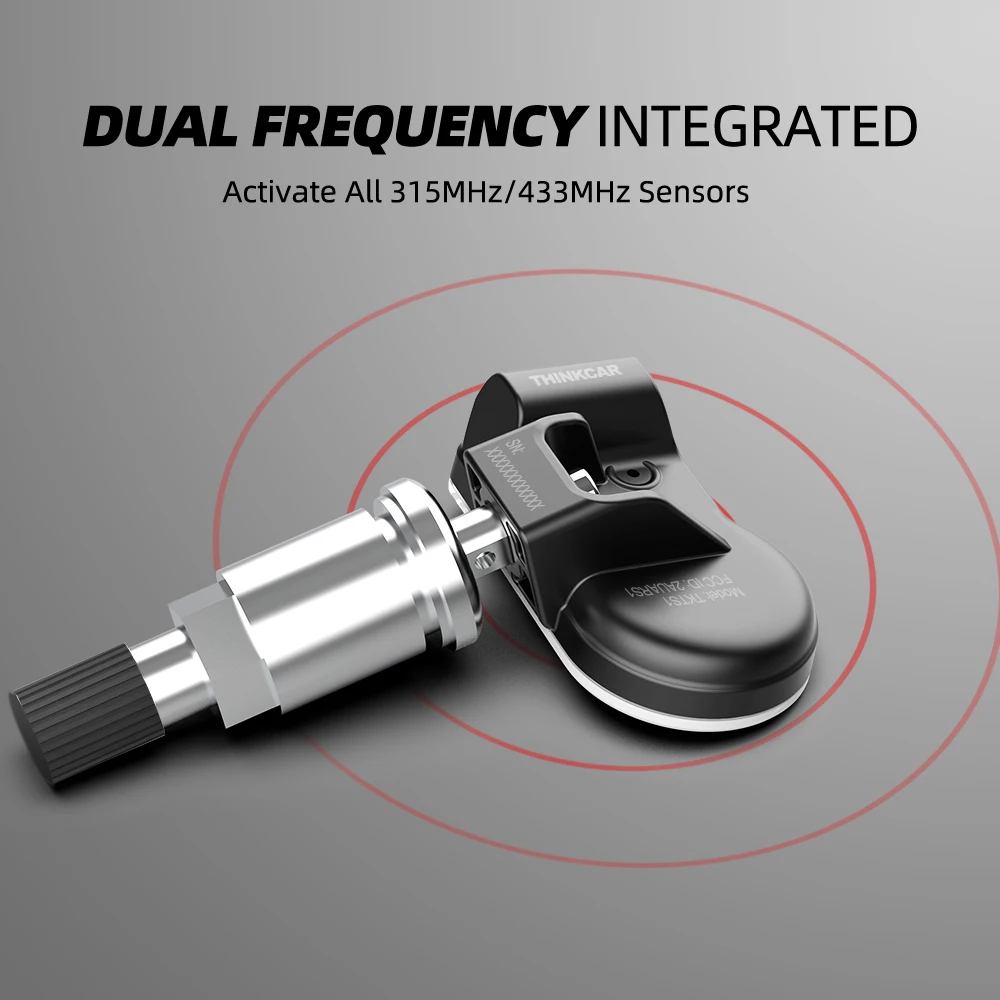

Dual-frequency integrated：

Activate All 315MHz/433MHz Sensors

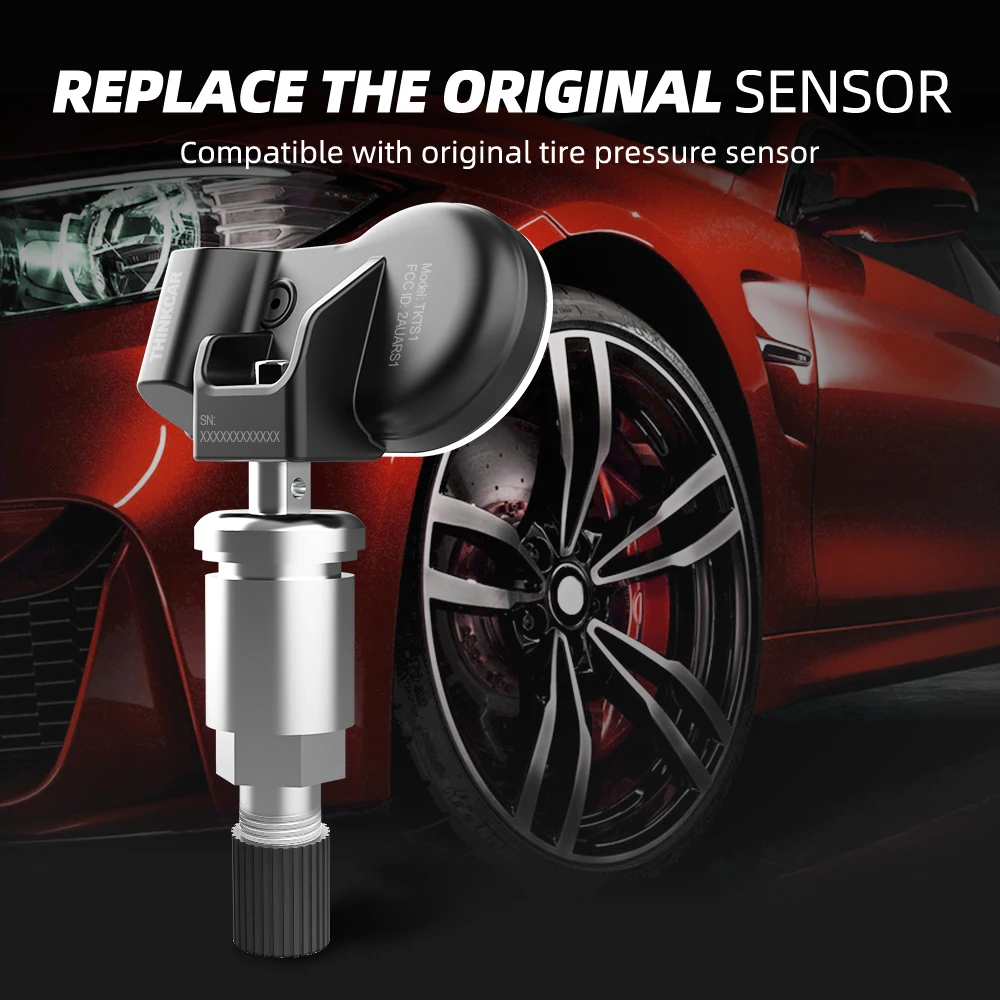

Replace the original sensor

Compatible with original tire pressure sensor

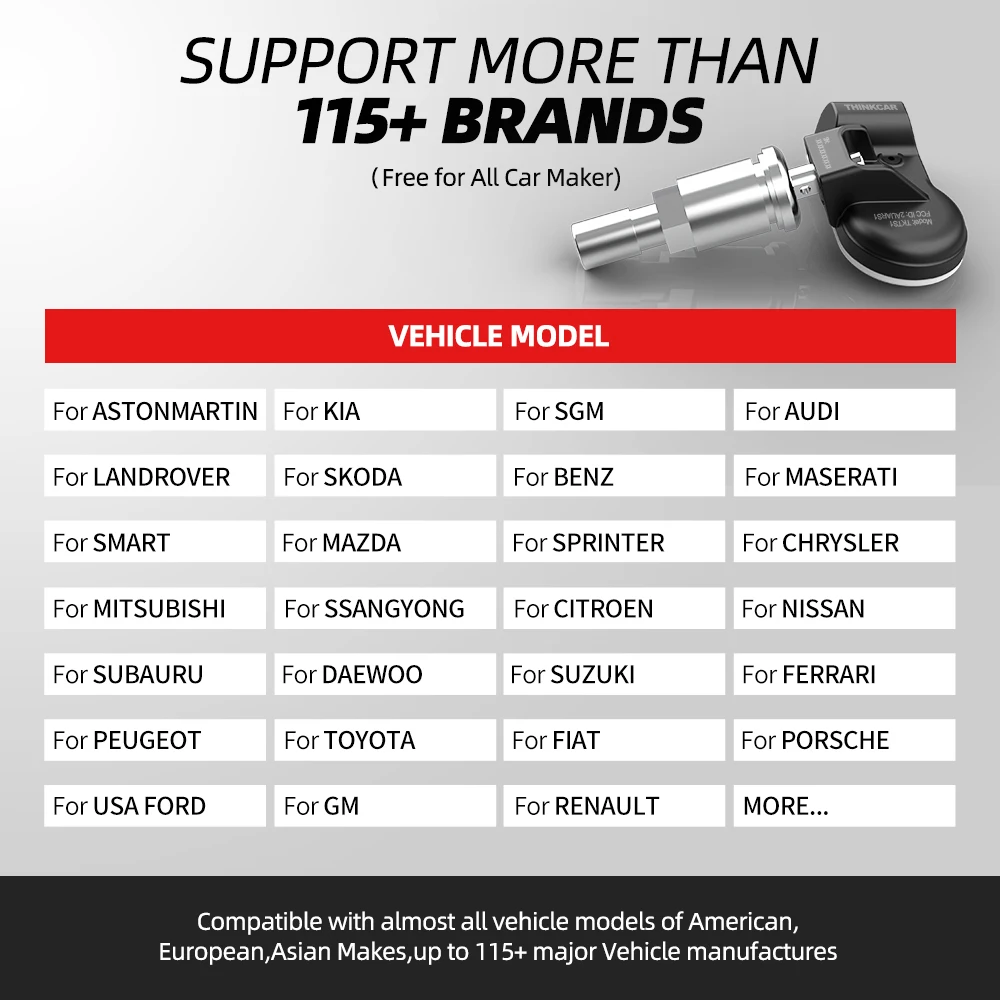

Support more than 115+ brands （ for All Car Maker)

Compatible with almost all vehicle models of American,
European, Asian Makes, up to 115+ major Vehicle manufactures

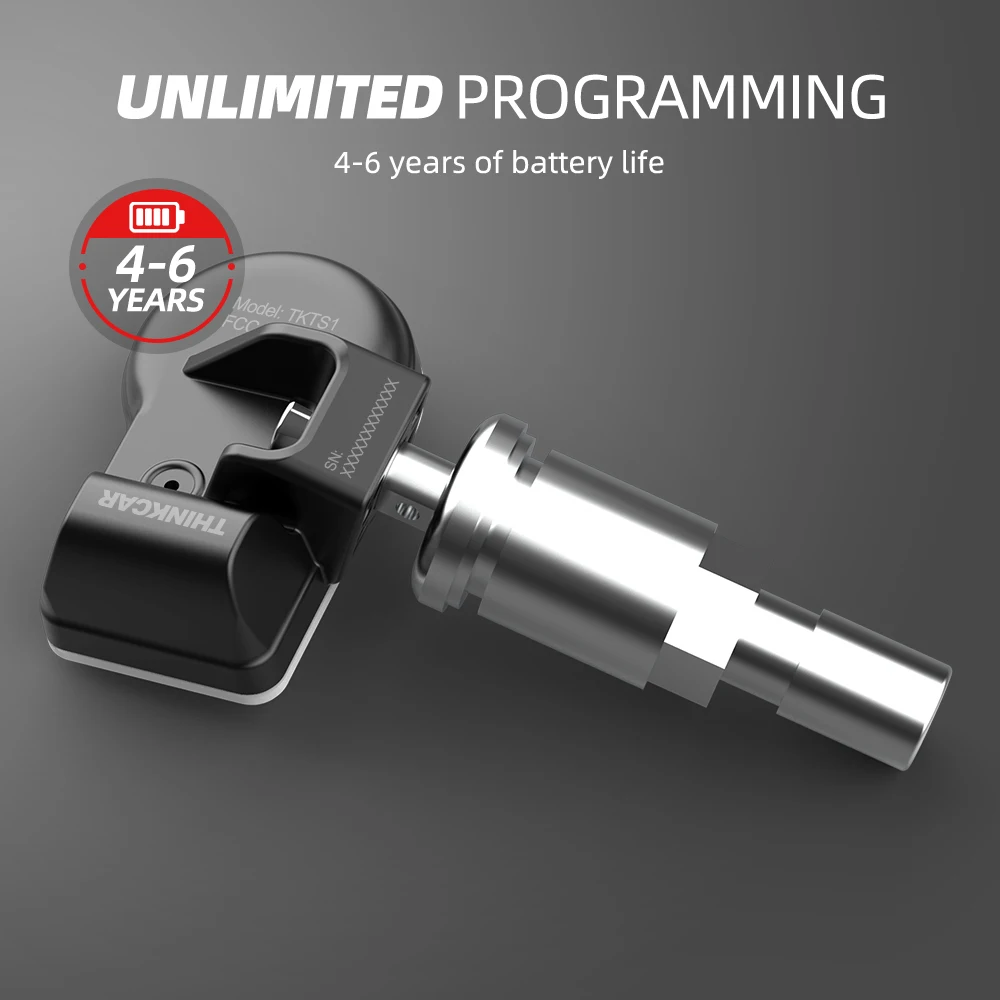

Unlimited programming

4-6 years of battery life

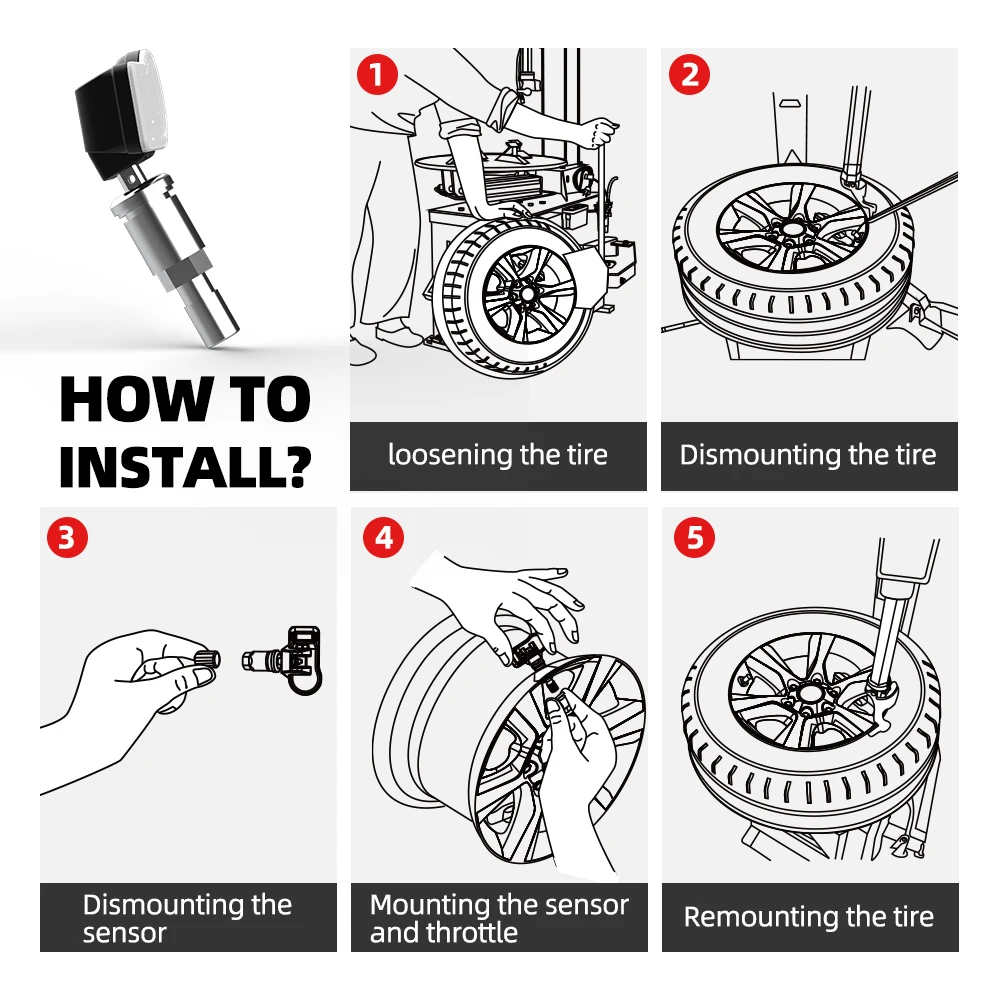

How to trigger theTHINKTPMS S1 Sensor:

1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance

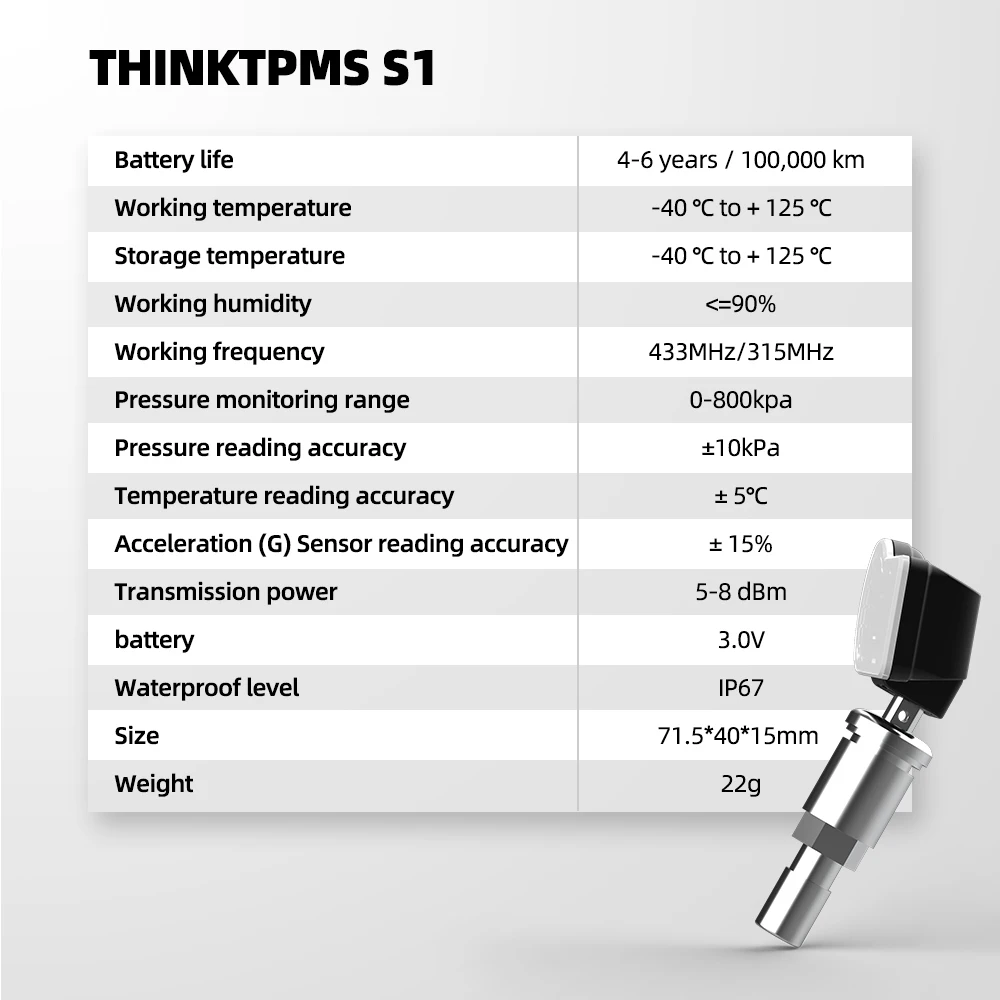

Specifications of THINKTPMS S1:

Battery life：4-6 years / 100,000 km
Working temperature：-40 ℃ to + 125 ℃
Storage temperature：-40 ℃ to + 125 ℃
Working humidity：<=90%
Working frequency：433MHz/315MHz
Pressure monitoring range：0-800kpa
Pressure reading accuracy：±10kPa
Temperature reading accuracy：± 5℃
Acceleration (G) Sensor reading accuracy：± 15%
Transmission power：5-8 dBm
battery：3.0V
Waterproof level：IP67
Size:71.5*40*15mm
Net weight：22g
