AUTEL AL539B OBD2 Code Reader Diagnostic Tool Scanner Auto 12V Electrical Test Battery

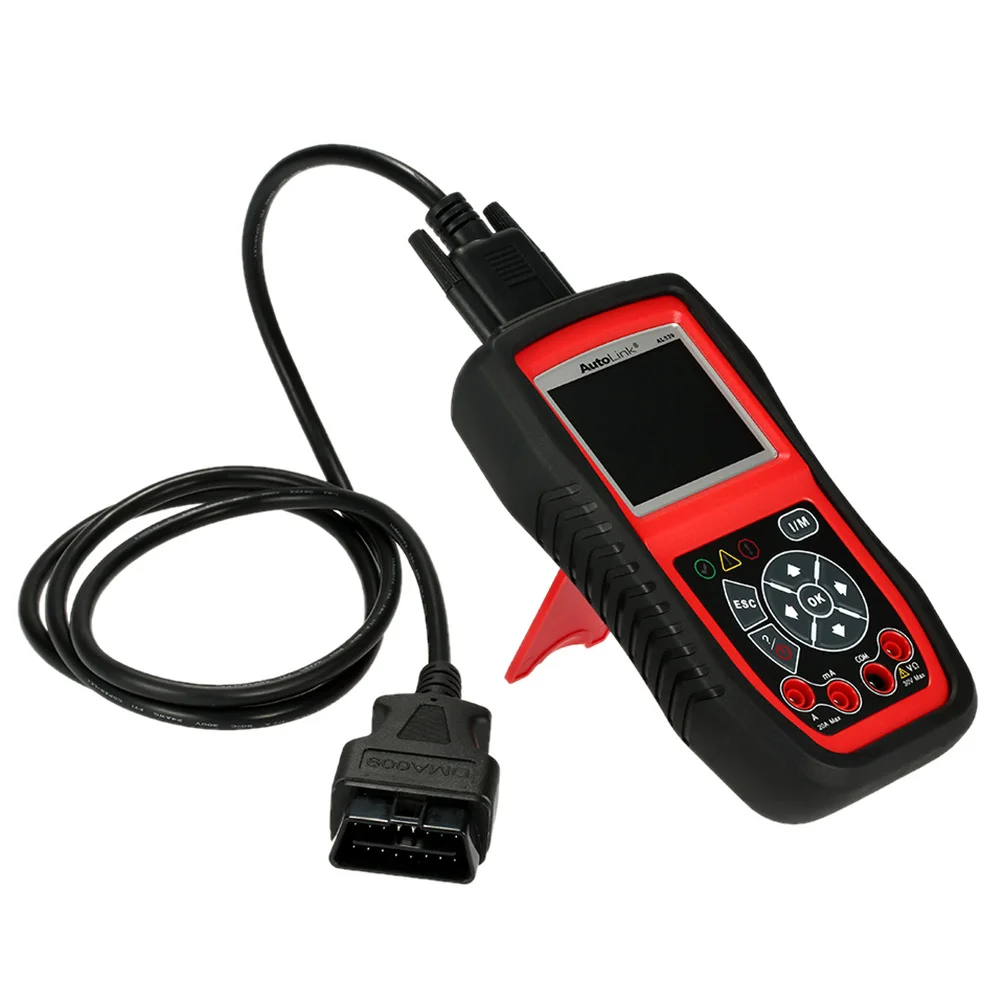

Autel AutoLink AL539B OBDII/EOBD Scanner is an ultimate auto scanner that combines AVOmeter, Battery Test and Code Reader specially designed to work with most 1996 and newer American, Asian and European OBDII/CAN compliant vehicles, which offers comprehensive vehicle analysis for rapid, accurate diagnosis and timely repair.

Comparing with the basic AL539, Autel AL539B is a code reader not only equipped with an easy-to-read build-in AVOmeter to allow you to test voltage, continuity and current at the fingertip, but also it provides one more functions:Battery Test, a quick and accurate load-free testing of most types of 12V batteries including AGM, standard and maintenance-fee batteries for better user experience.

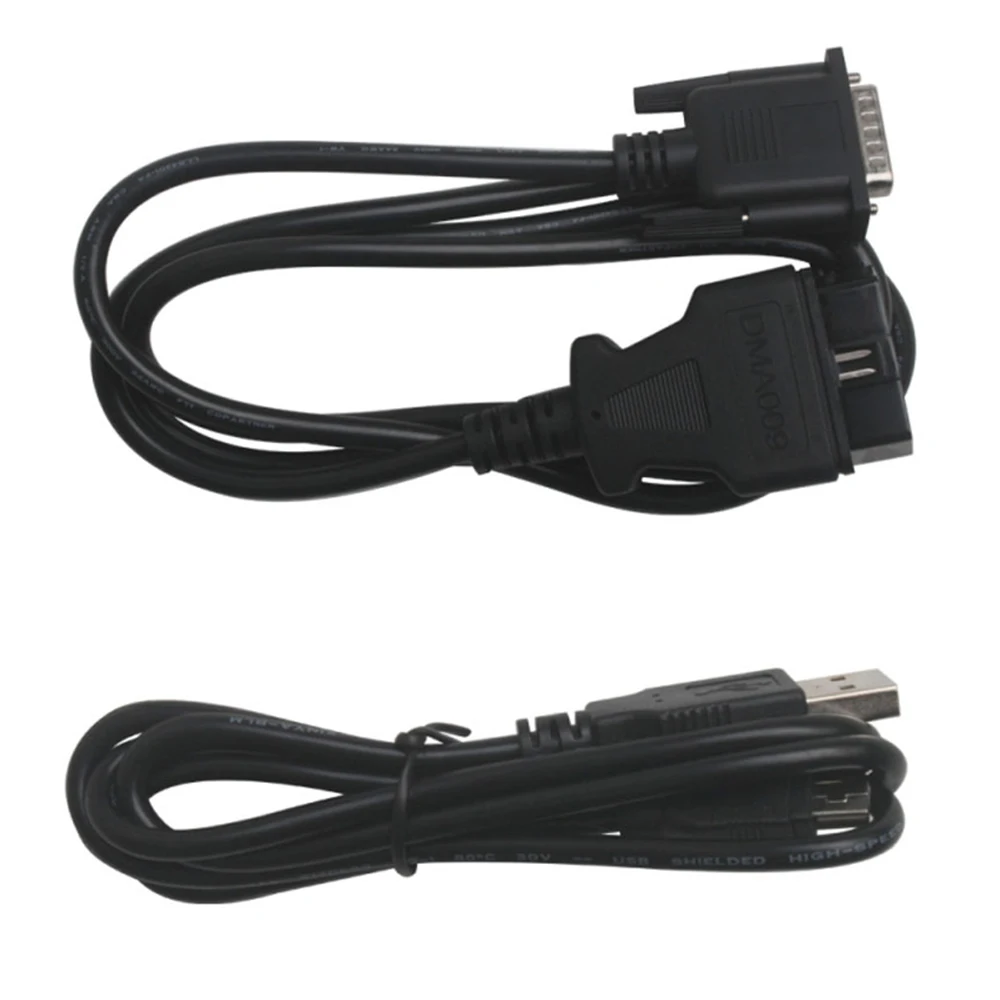

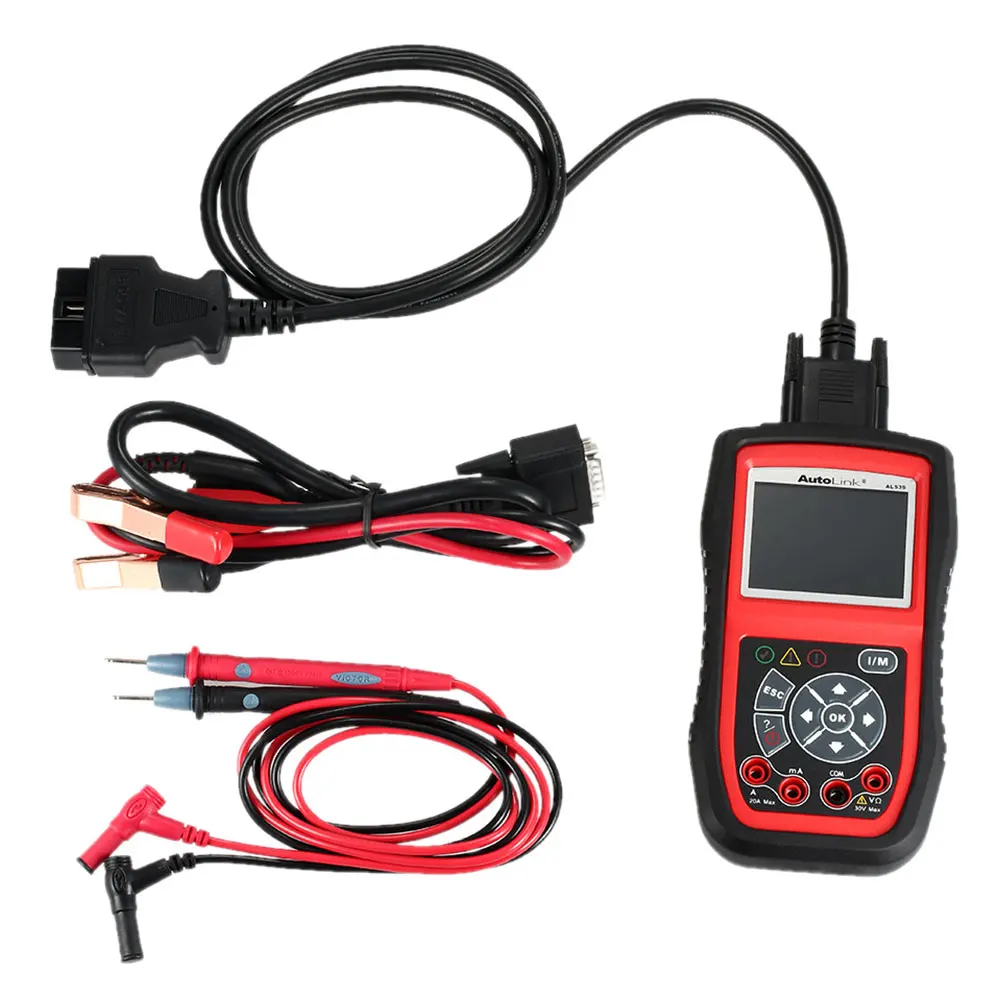

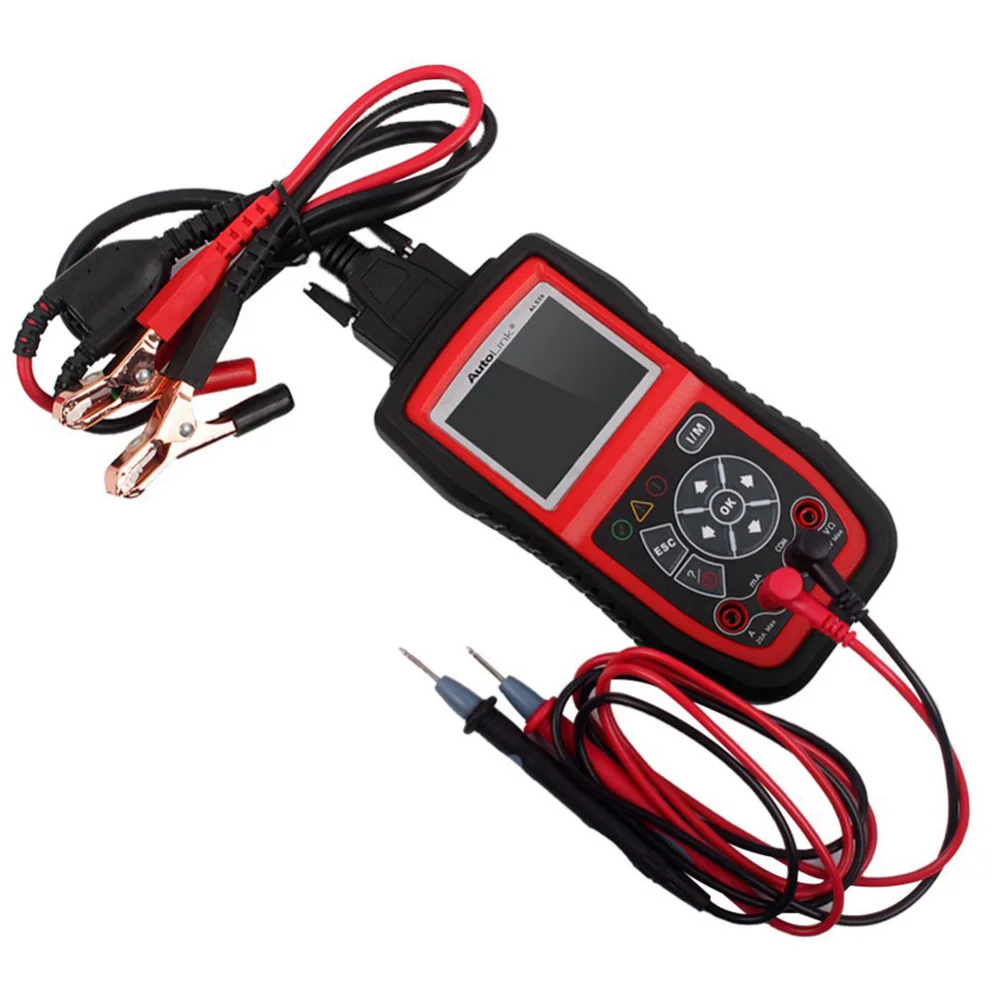

Cable Accessories: Three different cables are included for OBD, AVOmeter and Batter Test. Connect the scan tool to the battery terminals with battery test cable: red to positive (+) terminal, black to negative (-) terminal, and rock each clamp back and forth to ensure the connections are solid. The easy and intuitive operating steps displayed on LCD screen are your best assistance to make finding what you need simple and fast.

Complete OBDII Functions  NOTICE: AL539B also provides a built-in 3.7V lithium battery for off-vehicle data review and analysis. Please note that the circuit test is only available when this scan tool is powered by internal battery solely. Otherwise, it will cause incorrect results and potential damage.

.

Autel AL539B is a useful car scan tool with complete OBDII functions for providing users with efficient diagnostic solutions. It enables users to know the detailed running status and have possible trouble repaired in time.

1: Extensive Coverage: Autel AL539B is an ultimate automotive diagnostic tool which works on most 1996 and newer vehicles (OBDII &CAN).

2:One-Click I/M Readiness: Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification.

3:Reading codes: Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.

4:Erasing Codes & Reset Codes: Turns off Check Engine Light (MIL), clears codes and resets monitors.

5:Live Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

6:Viewing Freeze Frame Data: Allows the technician to view the vehicle’s operating parameters at the moment a DTC (Diagnostic Trouble Code) is detected.

7:O2 Monitor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8:On-board Monitor Test: Read the results of on-board diagnostic monitoring tesyts for specific components and systems.

9:Vehicle Information: Retrieves VIN, CINs, CVNs and In-use Performance Tracking on 2000 and newer vehicles that support Mode 9.

10:Component Test: Allows initiating a leak test for the vehicle’s EVAP system.

  Abundant Additional Services

1:DTC Lookup: The DTC lookup is used to search for definition of diagnostic trouble codes stored in the DTC library for code breaker information, which means you don’t have to waste time to look up codes’definition over the internet.

2:Print Data: An AL539B, a PC or laptop with USB port together with a USB cable enable you to print out the diagnostic data recorded by the scan tool directly rather than take notes by yourself.

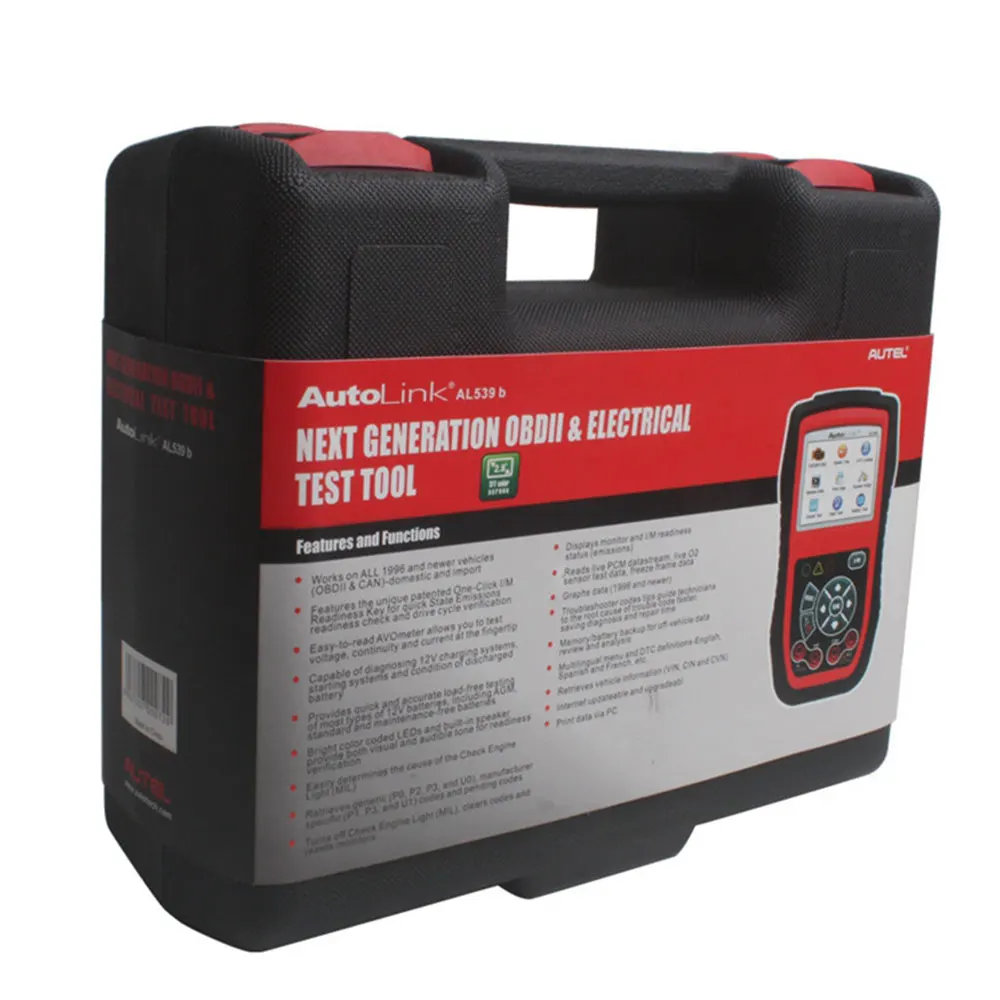

3:Easy to Carry: Autel AL539B has the advantages of convenience taking and placing in a portable suitcase for quick clean-up. You can pack the unit and accessories easily in a high-grade, atmospheric tool blow case and take it on the road anytime, anywhere!

4:One Year Warranty: This car code reader AL539B will be free from all defects in materials and workmanship for a period of one year from the date of the original purchase.

5:Free Update for Lifetime: Autel AL539B is internet updateable/upgradeable with lifetime free of charge for all registered users. Feel free to get technical support via email/Q&A, or hotline on official site if you are unsure whether the scanner tool is suitable for your vehicle, or any questions.

Display: TFT color display 320 x 240 dpi

Operating Temperature: 0 to 60°C (32 to 140 F°)

Storage Temperature: -20 to 70°C (-4 to 158 F°)

LengthWidthHeight: 175 mm (6.91″)96.6 mm (3.80″)37 mm (1.46″)

Weight: 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire)

1 x Main Unit

1 x Probes

1 x 3.7V Li-ion Battery

1 x CD

1 x USB Cable

1 x OBDII Cable

1 x Battery Test Cable

1 x Carry Case

1 x User’s Manual
