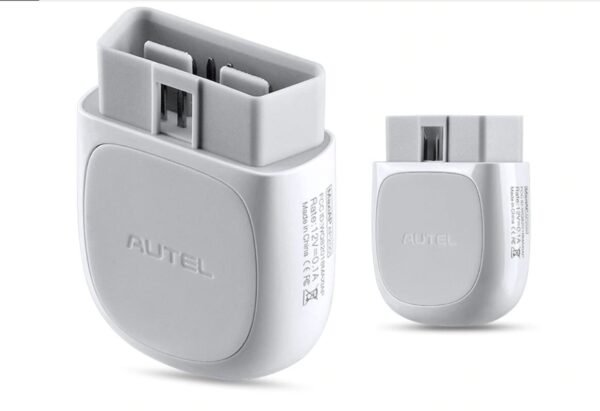

AUTEL AP200 Bluetooth OBD2 Scanner Code Reader with Full Systems Diagnostic

AUTEL AP200 Bluetooth OBD2 Scanner Code Reader with Full Systems Diagnostic for DIYers

Autel AP200, as an innovative Bluetooth OBD2 scanner, equipped with its own App -“Maxi AP200”, complete OBD2 functions, along with various reset services (Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service etc.), is a compact option for family DIYers to troubleshoot vehicle’s issues in no time.

Note : only ONE FREE Car Model Software.
Then each extra car model software = extra cost.

HIGH COST PERFORMANCE: This obd2 scanner offers ONE FREE vehicle-specific software allowing you to diagnose one car for free, then you need to spend only  €15.99(Android each) / €21.99(iOS each) buying another 12-month use permission of other car model.

COMPARISON LIST:

COMPLETE OBD2 FUNCTIONS:

Read extensive current, pending and permanent codes in OBD system quickly

Clear detected fault codes and turn off the Check Engine Light efficiently

View graphical live data of vehicle’s computer module(s) for easy analyses

View the vehicle’s operating parameters at the moment a DTC is detected

Read I/M readiness status to have a vehicle inspected for state emissions compliance

Perform O2 sensor test to check fuel efficiency and vehicle emissions

Read the results of on-board diagnostic monitoring tests for specific components/systems

Retrieve the vehicle information of VIN, CINs, and CVNs completely

Perform the component Test by allowing initiating a leak test for the vehicle’s EVAP system

THE OPERATING PROCEDURES:

1. Download and install the app-MaxiAP200 in Google Play or App Store to your device;

2. Register and log in the MaxiAP200 APP;

3. Get one free car software through Mall after binding VCI for the first time;

4. Plug the MaxiAP200 tool into the vehicle’s Data Link Connector (DLC);

5. Turn on the vehicle ignition while turn the engine off;

6. Tap Me/Setting button of your device to pair the MaxiAP AP200 with your device;

7. Start to diagnose your car.

Specifications:

Communications: BL 4.2 Dual-Mode

Wireless Frequency: 2.4 GHz

Input Voltage Range: 9 VDC to 26 VDC

Supply Current: 100 mA@12 V

Sleep Mode Current: 3 mA@12 V

Operating Temp.: 0°C to 50°C

Storage Temp.: -20°C to 70°C

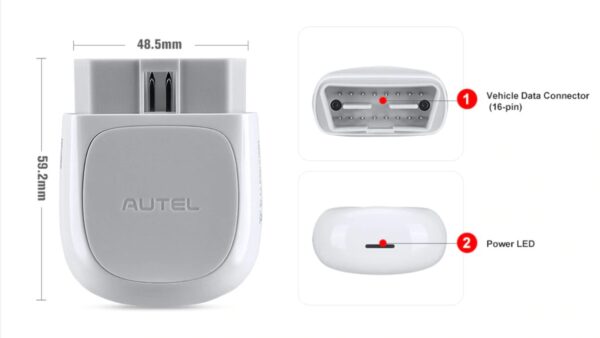

LengthWidthHeight: 59.2 mm (2.33”) * 48.5 mm (1.91’’) * 24.6 mm (0.97’’)

Weight: 35g (0.07 lb.)

Package List:

1 * Main Unit

Descriptions:

Autel AP200, as an innovative Bluetooth OBD2 scanner, equipped with its own App -“Maxi AP200”, complete OBD2 functions, along with various reset services (Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service etc.), is a compact option for family DIYers to troubleshoot vehicle’s issues in no time.

Multi-Languages:

English, Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

Features:

SUPERIOR SYSTEMS DIAGNOSES

With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission, ABS, SRS, SAS, TPMS, EPB and Fuel systems etc.

Read DTCs from the vehicle’s control systems to locate problem areas, and offer solutions;

Erase the codes easily after DTCs retrieving and certain repairs have been carried out;

Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;

The active test used to access vehicle-specific subsystem and component tests.

ADVANCED RESET SERVICES:

This AUTEL Bluetooth OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

Oil Reset –Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

EPB Reset –Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

BMS Reset –Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

SAS Reset –perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.

TPMS Reset –quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.

IMMO Service – Disable the lost vehicle keys and program the replacement key fob.

DPF Regeneration –Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

Vehicle Coverage:

If you are not sure about the compatibility between this obd2 scanner and your car, please feel free to contact us.

Notice:

You can Pay 15.99(Android Device) or 21.99(iOS Device) for software of another specific vehicle, and then gain specified car’s systems diagnoses and reset services.

Warranty:

12-month warranty for any quality problems
