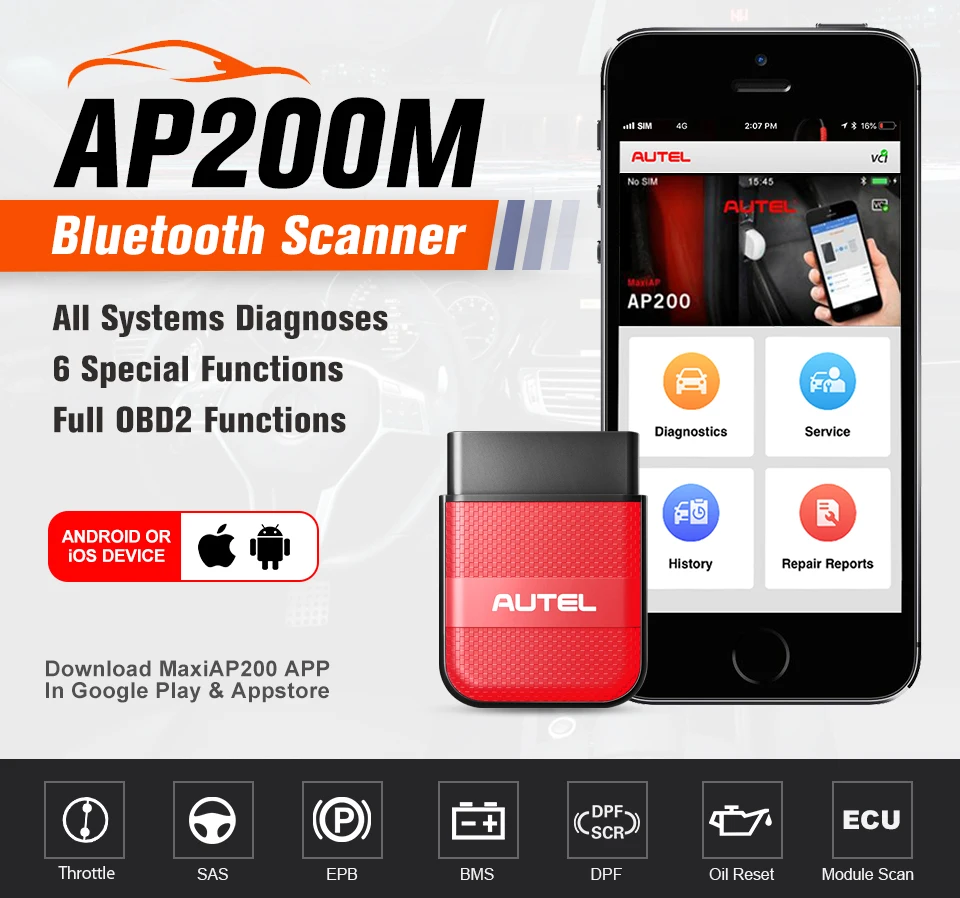

AUTEL AP200M OBD2 Bluetooth Scanner Car Diagnostic Tool

All systems diagnosis, Oil reset, PDF, EPB, SAS, BMS Reset, Throttle match, OBDII Functions, 1 free software!

■ Multiple Languages

English, traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

■ Brief Introduction

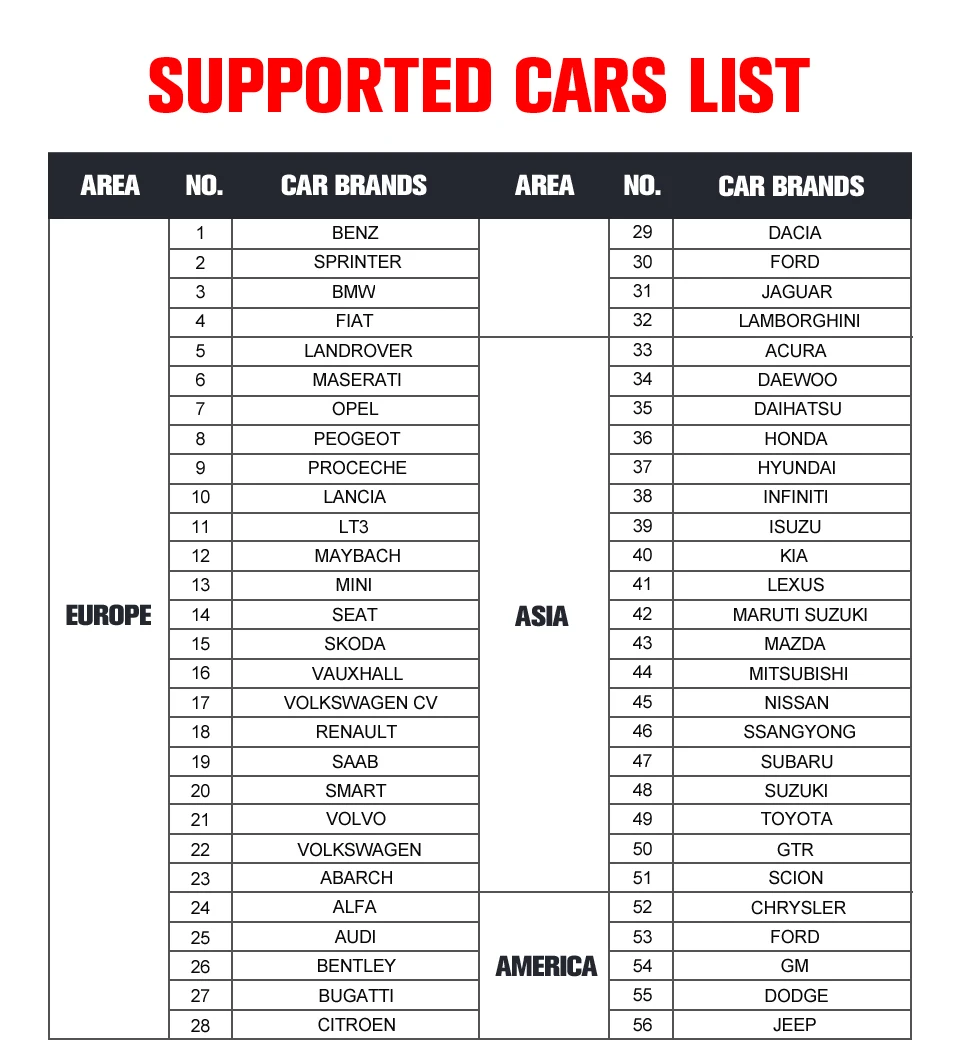

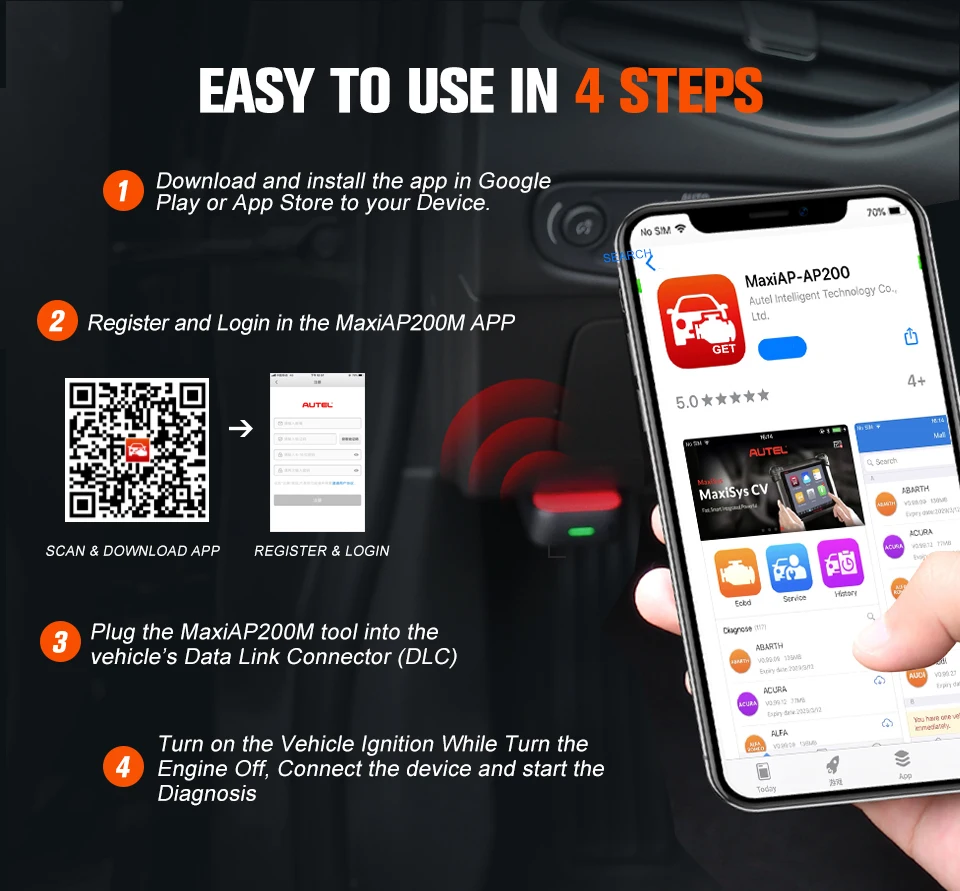

These new APPs that communicate with the vehicle via the purchased unit’s Bluetooth OBDII dongle, are compatible with U.S., European and Asian vehicles, 1996 and newer, and are free to download from Google Playstore and the Apple’s app store

The AP200M is an all-systems scanner and function-rich service tool for the vehicle brand of the user’s choice.

■ Comprehensive System diagnosis

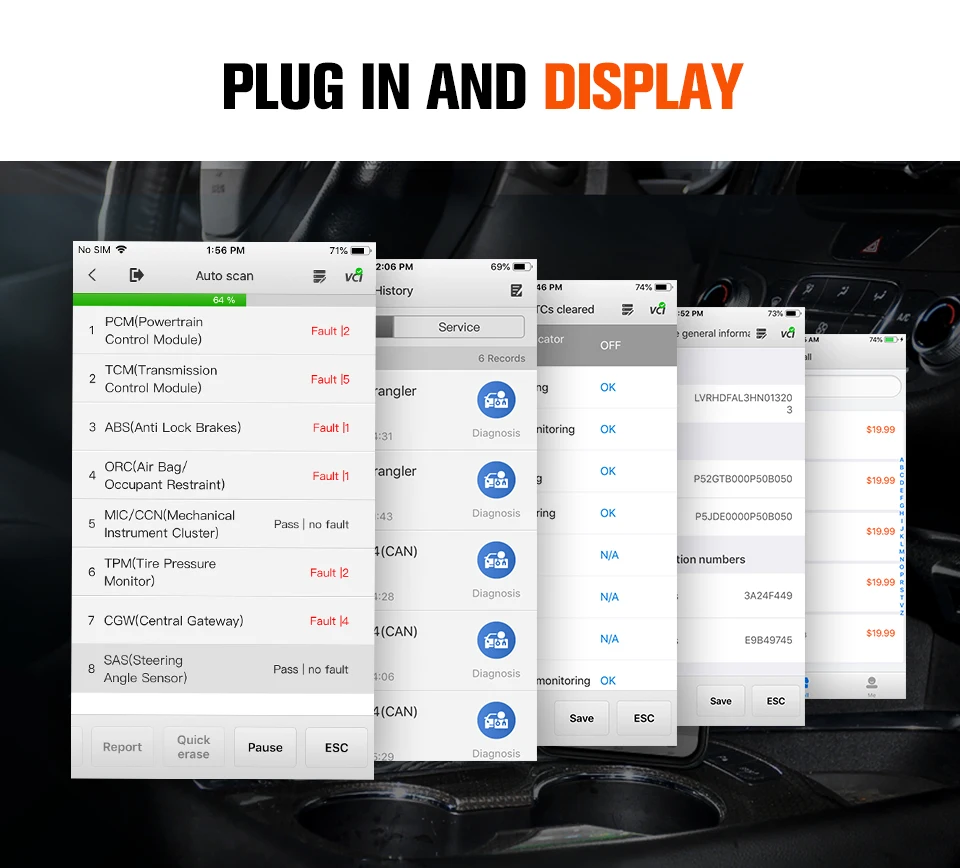

With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems ECU information to facilitate vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission, ABS, SRS, SAS, TPMS, EPB Fuel systems etc.

– Read DTCs from the vehicle’s control systems to locate problem areas, and offer solutions;

– Erase the codes easily after DTCs retrieving and certain repairs have been carried out;

– Live data shows each parameter item displayed in analogue, text, waveform graph modes etc.;

– The active test is used to access vehicle-specific subsystem and component tests.

■ 6 Powerful Reset Service

This Bluetooth OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

Oil Reset –Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

EPB Reset –Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

BMS Reset –Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

SAS Reset –perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.

DPF Regeneration –Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

Throttle Reset –

■ Multiple Languages

English, traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

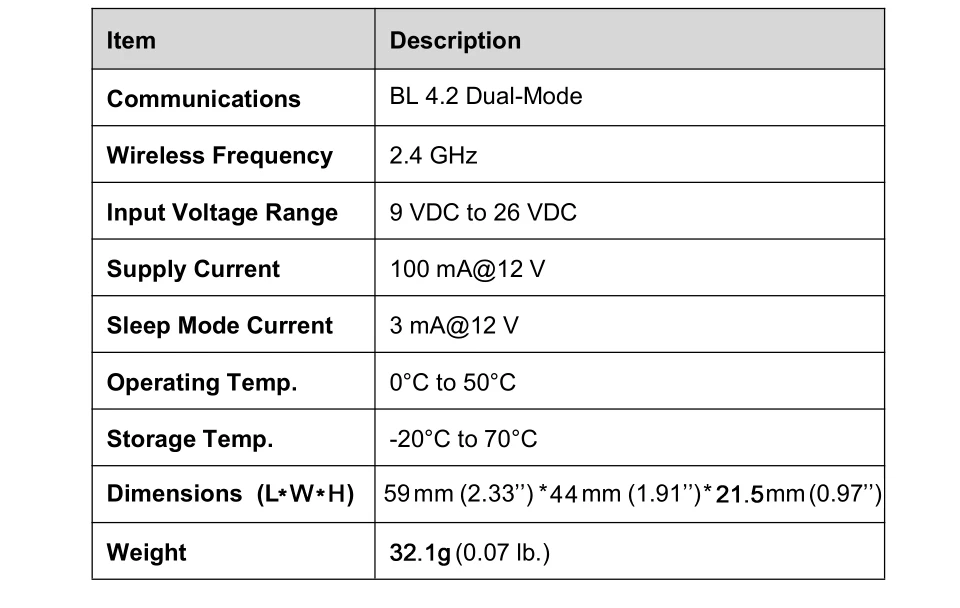

■ Specifications

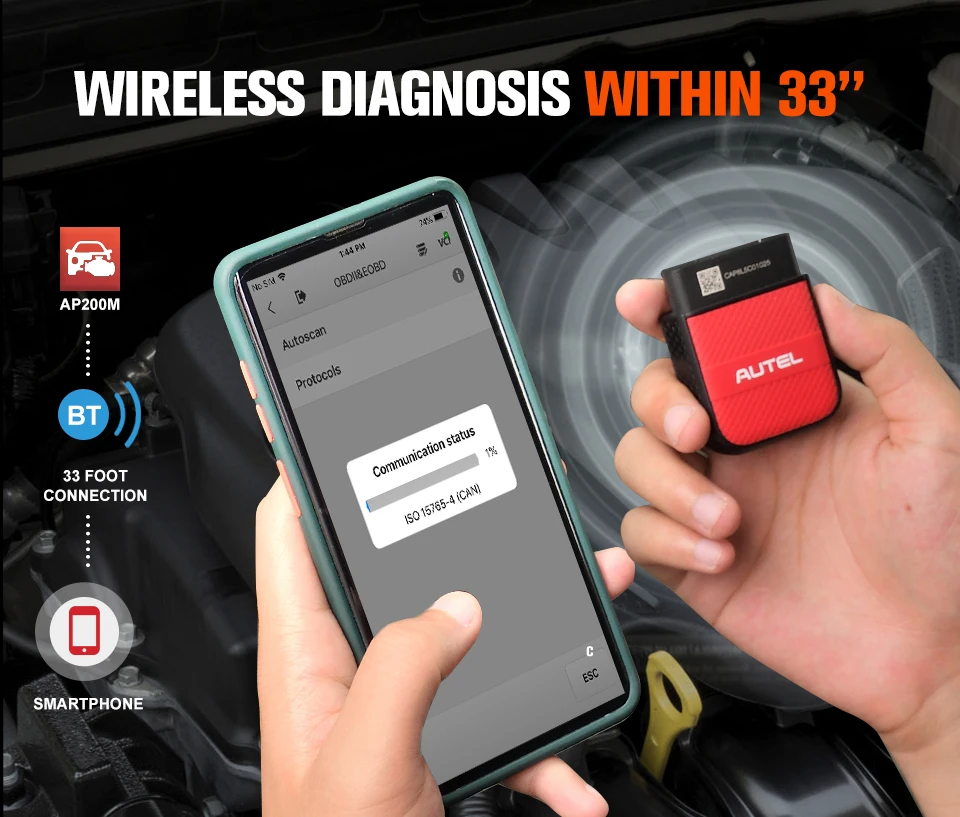

Communications BL 4.2 Dual-Mode
Wireless Frequency 2.4 GHz
Input Voltage Range 9 VDC to 26 VDC
Supply Current 100 mA@12 V
Sleep Mode Current 3 mA@12 V
Operating Temp. 0°C to 50°C
Storage Temp. -20°C to 70°C

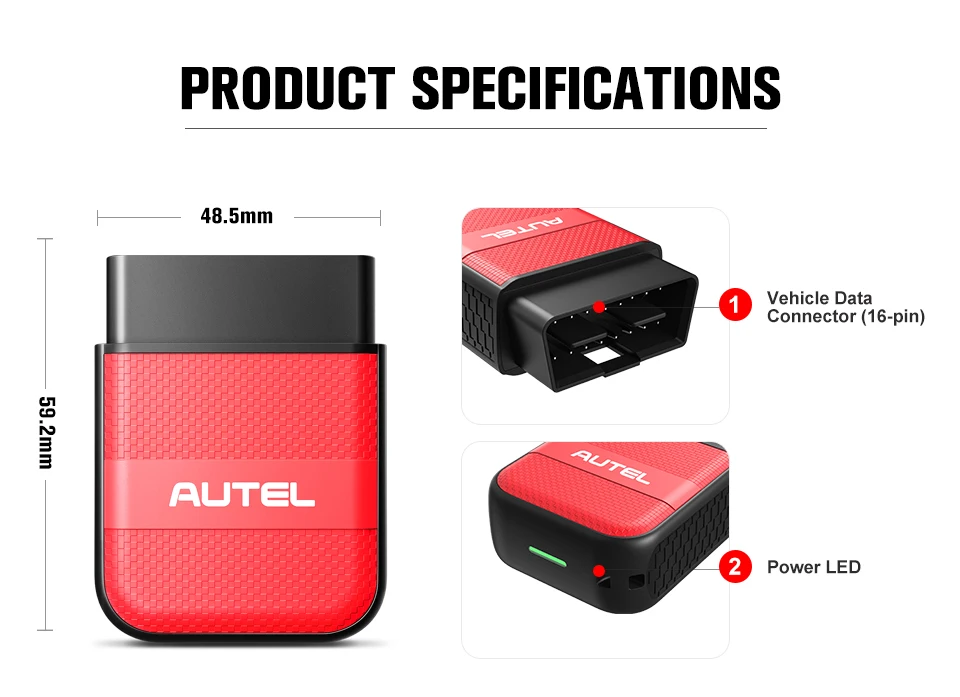

Dimensions (L*W*H)
59 mm (2.32”) * 44 mm (1.73”) * 21.5mm (0.85”)
Weight 32.1g (0.07 lb.)

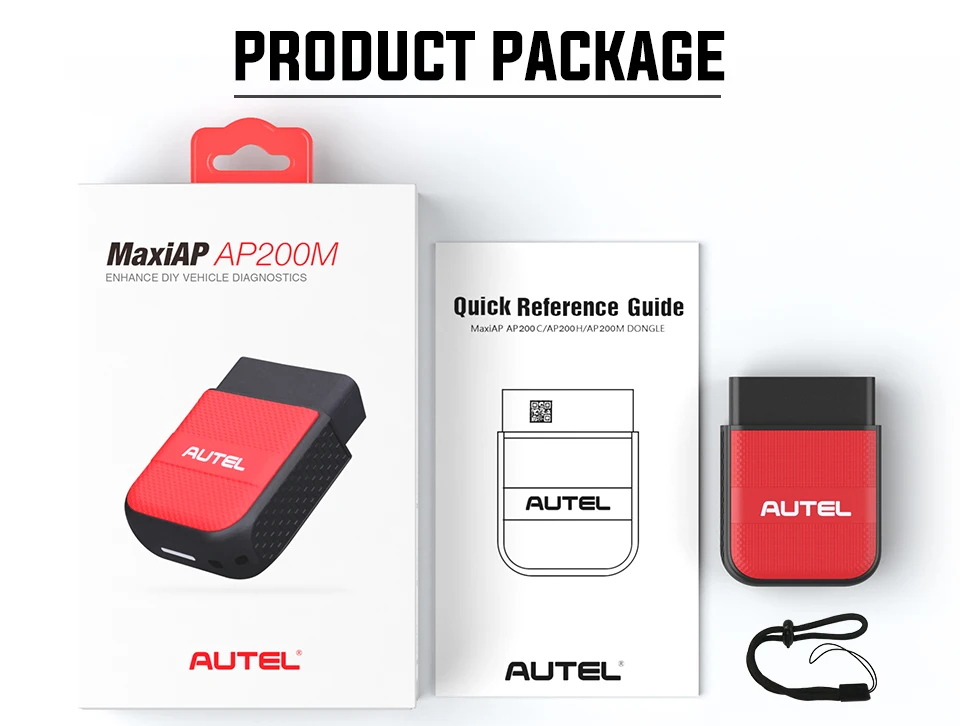

■ Packing List

1 * Main Unit

■ Warranty

12-month warranty for any quality problems
