Autel MaxiIM KM100

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

Why choose Autel MaxiIM KM100?

1. Free Update Online Lifetime
2. Global Version No IP Blocking Problem
3. Supporting 8 Key Series And 37 Models
4. Simple Operation, Guided User Instructions, Easy To Use
5. Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
6. Multi-Language Supported: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese
7. KM100 Adopts a High-Resolution Display Screen of 1280*720, and Supports Touch-Screen Operation, which is sensitive, convenient, and fast to use.
8. Support Chip Simulation for Emergency Use (for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.

Features:

• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
• One-Minute Key Generation
• Chip Read & Write, Cloning and Frequency Detection
• AutoVin vehicle identification to ensure accuracy
• Simple User Interface with Concise Instructions
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

More powerful Function:

1. Android-based touch screen device
2. Contains MaxiVCI VCI200 so you can perform key simulation and key learning after generating a key. You can generate the key and go directly into programming with two button presses.
3. Use the USB cable to transfer data from another device, such as IM608, to a laptop and from the laptop to the key tool.
4. The key tool comes with 2 blank keys for you to use at your convenience. One has the Autel logo on the back and the other does not.
5. Supports generate aftermarket chip, i.e xhorse super chip. But can generate xt27 only once, need to reset chip with xhorse tool if want a second generation
6. The immo programming is very impressive. It is same as im508 for immo but without programmer. You can use it instead of im508 im608 on many vehicles to program keys as it’s simple and easy to pack/unpack and compact, it’s convenience.
7. Support Toyota 8A all keys lost and all smart keys lost without APB112 emulator

VEHICLE COMPATIBILITY:

· Support AutoVIN
· Simple Operation,Guided User Instructions,Easy To Use
· Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
· Supporting 8 Key Series And 37 Models
· Covering The Top 100 Selling Models In North America For The Last 10 Years

How to Do Key Generation via Autel MaxiIM KM100?

-Automatically scan the VIN code to obtain vehicle information
-Obtain model information by scanning the VIN barcode on the nameplate
-Scan the license plate number to confirm the model, if you can’t scan it, you need to enter it manually
-PLC V200 Bluetooth picks up the car, after generating the remote control, you can directly select the immo function to match the key, without the need to push back to the main interface to select the IMMO function, and then re-select the model.

Specification:

Dimensions  (WxHxD): 200mm(7.9″) x 89 mm (3.5″)   x 22 mm (0.87″)
Weight: 352.7g (0.8 lb)
Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android TM9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output MIC: supported
Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

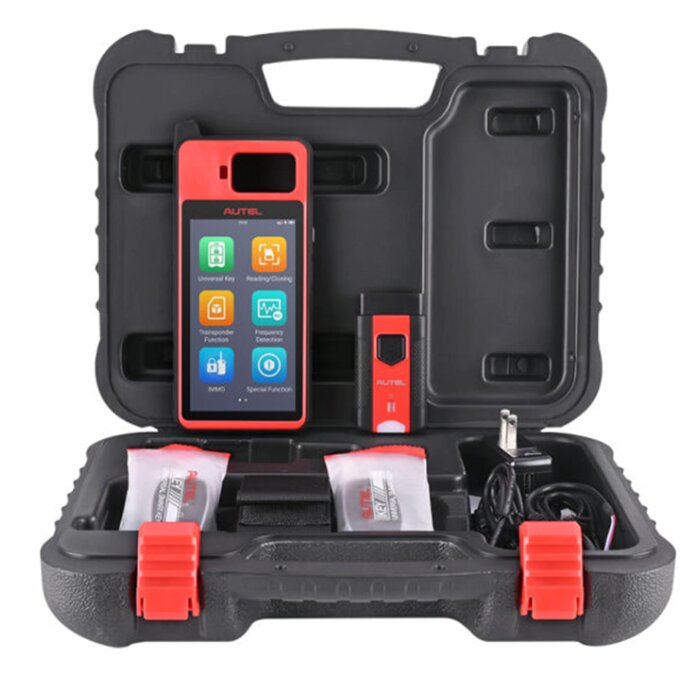

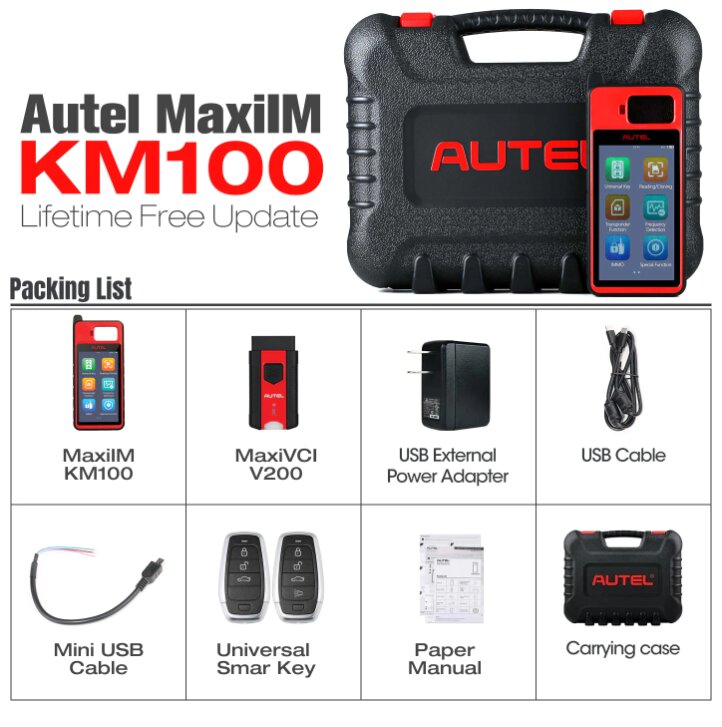

Package List:

1pc x KM-100 Universal Key Generator
1pc x OBD Adapter
2pcs x Universal Keys
1pc x Hard Shell Carrying Case
