iCARSOFT Car Bluetooth Diagnostic OBDII Multi-scan Tool Scanner
Car Bluetooth Diagnostic Scanner
€65.00 including 23% VAT Rate
iCARSOFT Car Bluetooth Diagnostic OBDII Multi-scan Tool Scanner
It can be used as a diagnostic scan tool and real-time performance monitor.(not support IOS)
OBDII PROTOCOLS1.ISO15765-4 (CAN)
2.ISO14230-4 (KWP2000)
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM.
• Cute and portable design without the long cable.
• Automatically power off, power save function. When chief chip sensor that the communication
is off for one hour, it will automatically power off and entre power save mode. It helps a lot for saving power.
• J1939 and stable J1979 protocol offers strong second development for customers.
• Compatible Devices,
Android
Smartphones (Android 2.2 and newer)
Tablets (Android 2.3.3 and newer)Windows
Bluetooth-enabled PCs, Laptops,
Phone (Windows Phone 8 and newer)Tablets (Windows 8 and newer)
Blackberry
Smartphone (BB 10.0.0.0 and newer)
Tablet (BB 2.0.0.0 and newer)
Apple/iOS
Not supported
• Allocate address freely, not traditional
ADHOC address mode any more.
• Offers simple connecting
way for customers.
FUNCTIONS
• iCarsoft Bluetooth Multi-scan Tool i620 is a high-quality automotive scanning tool, contact Bluetooth 2.0 supports all OBD-II protocols :
• Automatic
• SAE J1850 PWM(41.6Kbaud)
• SAE J1850 VPW(10.4Kbaud)
• ISO9141-2(5 baud init,10.4Kbaud)
• ISO14230-4 KWP(5 baud init,10.4 K baud)
• ISO14230-4 KWP(fast init,10.4 K baud)
• ISO15765-4 CAN(11bit ID,500 K baud)
• ISO15765-4 CAN(29bit ID,500 K baud)
• ISO15765-4 CAN(11bit ID,250 K baud)
• ISO15765-4 CAN(29bit ID,250 K baud)
• SAE J1939 CAN(29bit ID,250*K baud)
• USER1 CAN(11*bit ID,125*K baud)
• USER2 CAN(11*bit ID,50*k baud)
• default settings(user adjustable)
• Works with all OBD-II compliant vehicles
• Wireless (Bluetooth) 5~10 meter
• Software included for Palm, PDA,Mobile(Android,java,blackmerry,etc)
• Software included for Windows PC
•Software included for Windows Smartphone
• Read diagnostic trouble codes, both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL (“Check Engine” light)
• Display current sensor data
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Many others…

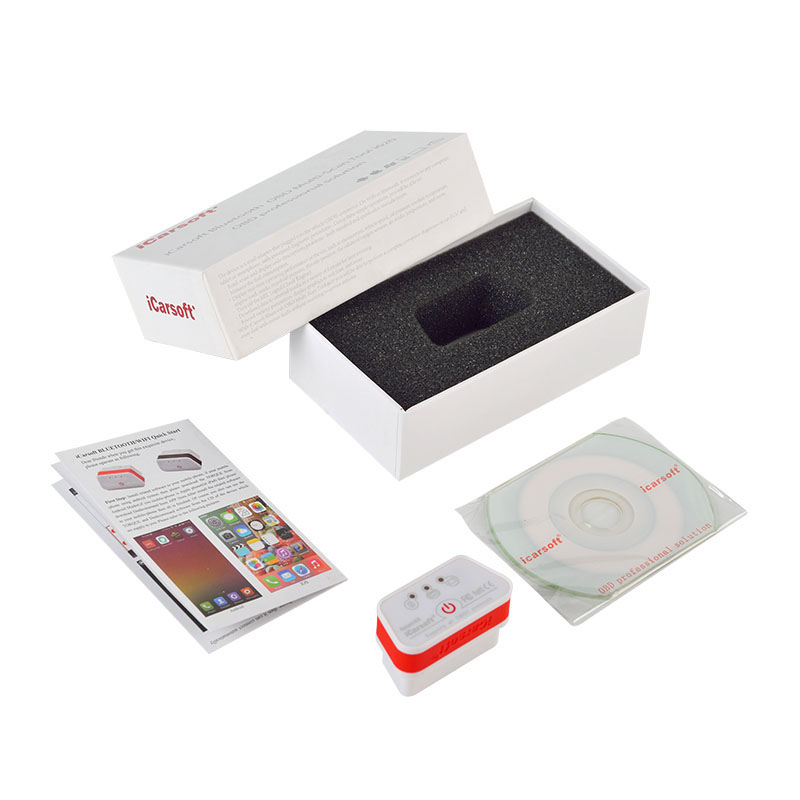

Package including:
• 1pc x Advanced OBD scan tool interface
• 1pc x CD drive
SPECIFICATIONS
• SSID: V-LinK• IP: 192.168.0.10
• Subnet: 255.255.255.0
• Port: 35000
• Range: 50 ft (Line of sight)
• Antenna: Internal
• Power Consumption: 0.75 Watts (With Power Switch)
• Wifi Standard: 802.11a/b/g
• Operating Temperature: -15 to 100 Deg Celsius
• Plastic: Automotive Grade Physical Dimensions: 2.75 x 1.25 x 1.2 inches
ICARSOFT BLUETOOTH QUICK START START
iCarsoft Bluetooth OBD Multi-Scan Tool i620 (Bluetooth) need the password to make the verification, open the’Setting’of your mobile-phone, unfold the Bluetooth, click the’ Bluetooth setting’ and scan the Bluetooth, choose ‘iCarsoft ‘and put the 1234 as password, then finished all operation.
Open TORQUE, select ‘setting’, click OBD adapter setting, choose the connection (Bluetooth) and select iCarsoft , then exit and back. Reopen the software, and then it can connect automatically and read data.
