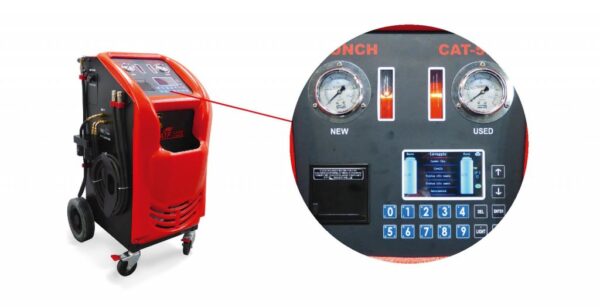

CTA-501S is professional in cleaning the auto transmission with the detergent added and exchanging the auto transmission fluid simultaneously with the engine on when there is a pressure difference inside the auto transmission and the pump. It also has the function of auto transmission fluid flow automatic recognition, frequently-used vehicle adding and searching list, fluid exchanging result customerized printing, and fluid filter replacement warning. Moreover, with a more prominent 5-inch display and optional VGA function, the presentation and operation will be more accessible and vivid.

Automatic cleaning and oil changing: support semi-automatic, fully automatic cleaning and charging oil function. Set the language guiding operation. Use one-click for any capacity setting and mechanical cleaning.
Humanized design: providing the operation of the human interface, daily breakdown tip interface, support multi-languages, USB and serial interface of the program and data update feature, unique rack, integration module, automatic door and reinforcing wheel. It makes the product is convenient to use, simple and reliable.

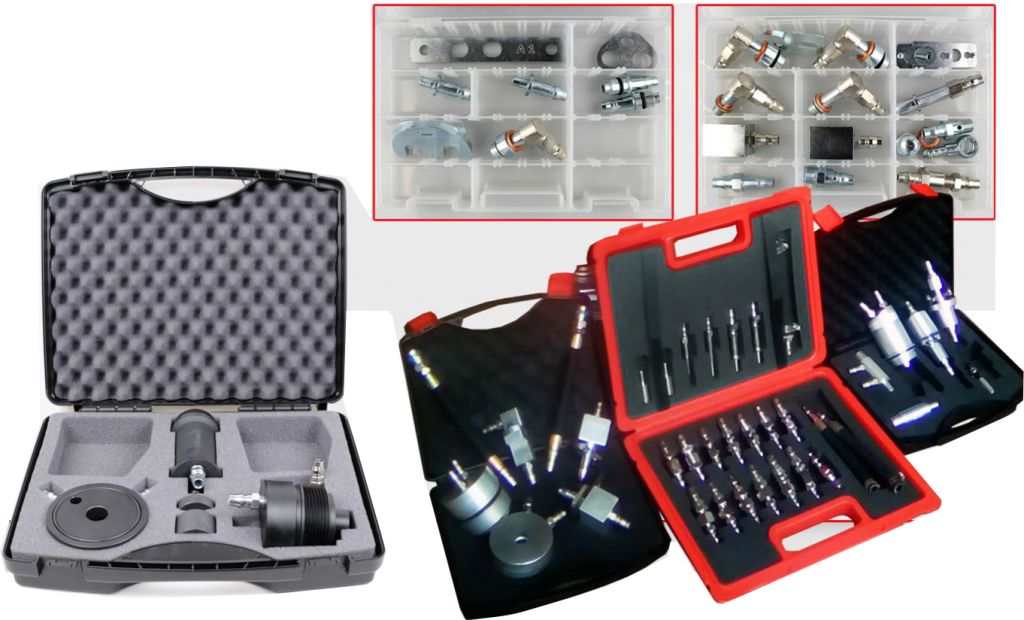

Strong compatibility: offers a variety of joints and adapters, Service for Ford, Cadillac and other types. Realization of the testing for various car brands in Europe, USA and Asia.
Wide test area: this product integrates automatic cleaning, changing and charging functions. Covering ATF 94 and 96, CVT, ATF VI, DSG and DCG types of oil.
Easy maintenance: using a high integration module and a unique collection of oil devices ensures products’ easy maintenance and more convenient operation.

LAUNCH CAT501+ ATF auto fluid transmission machine cat 501 auto transmission cleaner changer for sales

Cycle cleaning with detergent
Equivalent exchange with high accuracy
5-inch display
Fluid exchange results in customized printing
Free complete set of vehicle connectors upgrading globally
Fluid flow automatical recognition
Fluid level adjustment
Filter replacement warning
Optional VGA function
Frequently used vehicle adding and searching list

Specifications:

Working temperature: 0 ° Fto120 ° F/-18 ℃to50 ℃
Humidity: <90%
Working noise: <70dB
Working pressure: 86-106kpa
Water-proof grade: IP42
Filter accuracy：5μm
Flow speed：≥2.2L/1min
Fluid tank capacity： 20L×2
Equivalent exchange accuracy：±100ml

Power supply: AC110V,220V ± 10% 50Hz~ 60Hz
Equivalent exchange error: ±100ml
Max Detergent capacity: 1000ml
Temperature sensitivity: ± 1 °C
Filter presision:5μm
Noise: <70db
Pump consumption: 150W
Dimensions: 700*700*1300mm(L * W * H)
Ambient temperature: -10~+40°C
Relative humidity: <85%
