LAUNCH X431 SmartLink C 2.0 24V-Heavy Duty Module for Trucks

Launch X431 SmartLink C 2.0 Heavy-duty Truck Module for Commercial Vehicles/ Passenger/ New Energy Cars can Work with X431series: X-431 PRO3/ V+/PRO3S.

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module

Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods and can be used with X-431 PRO3S and PRO5 series.

It also supports complete system fault diagnosis, including code reading, code clearing, data stream reading, special functions, and action tests. Covering Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, and Yangchai, for Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and different types of vehicle software.

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module Features:
The heavy-duty truck module is used to expand the configuration of passenger cars equipped with DBScar lower computers to the integrated configuration of passengers and businesses, and it mainly supports commercial vehicles.

1. Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
2. The transmission speed is faster and more stable.
3. The visual operation interface makes it more convenient.
4. It supports commercial, passenger, and new energy vehicles and other models.
5. It supports super remote diagnosis.

Specifications:

CPU: dual processor: Cortex-A7+Cortex-M7

operating system: Linux

resolution: 320×480

power: < 6w

storage: 8GB

memory: 256M

working temperature: 0℃~50℃

working voltage: 9V DC—36V DC

dimensions: 200mm×110mm×47mm

communications: WIFI/Bluetooth/Ethernet

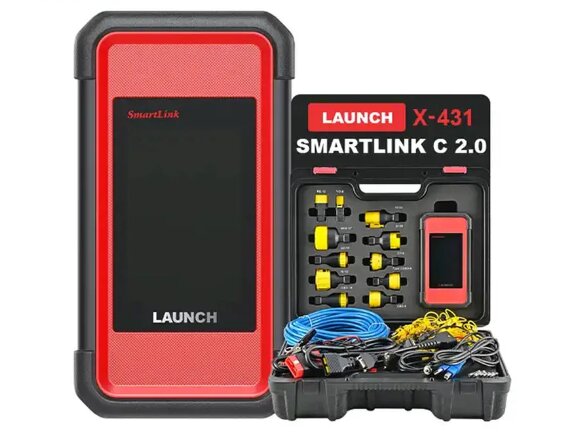

Package Includes:

1pc x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pc x HD15F to OBDII 16 male integrated test connector, RoHS
1pc x DB15F to HD15F test main line (without DC), L=1000mm, RoHS
1pc x Double clamp power cord (English, without LAUNCH), RoHS
1pc x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pc x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pc x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pc x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
1pc x X431 PAD4HDB15M-CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-for IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-for MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-for HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS
4pcs x X-431 PAD IV electric control adapter cable 1, RoHS
4pcs x X-431 PAD IV electric control adapter cable 2, RoHS
4pcs x X-431 PAD IV electric control adapter cable 3, RoHS
4pcs x X-431 PAD IV electric control adapter cable 4, RoHS
4pcs x X-431 PAD IV electric control adapter cable 5, RoHS
4pcs x X-431 PAD IV electric control adapter cable 6, RoHS
4pcs x X-431 PAD IV electric control adapter cable 7, RoHS
4pcs x X-431 PAD IV electric control adapter cable 8, RoHS
4pcs x X-431 PAD IV electric control adapter cable 9, RoHS
1pc universal password envelope (without LAUNCH), RoHS
1pc xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
