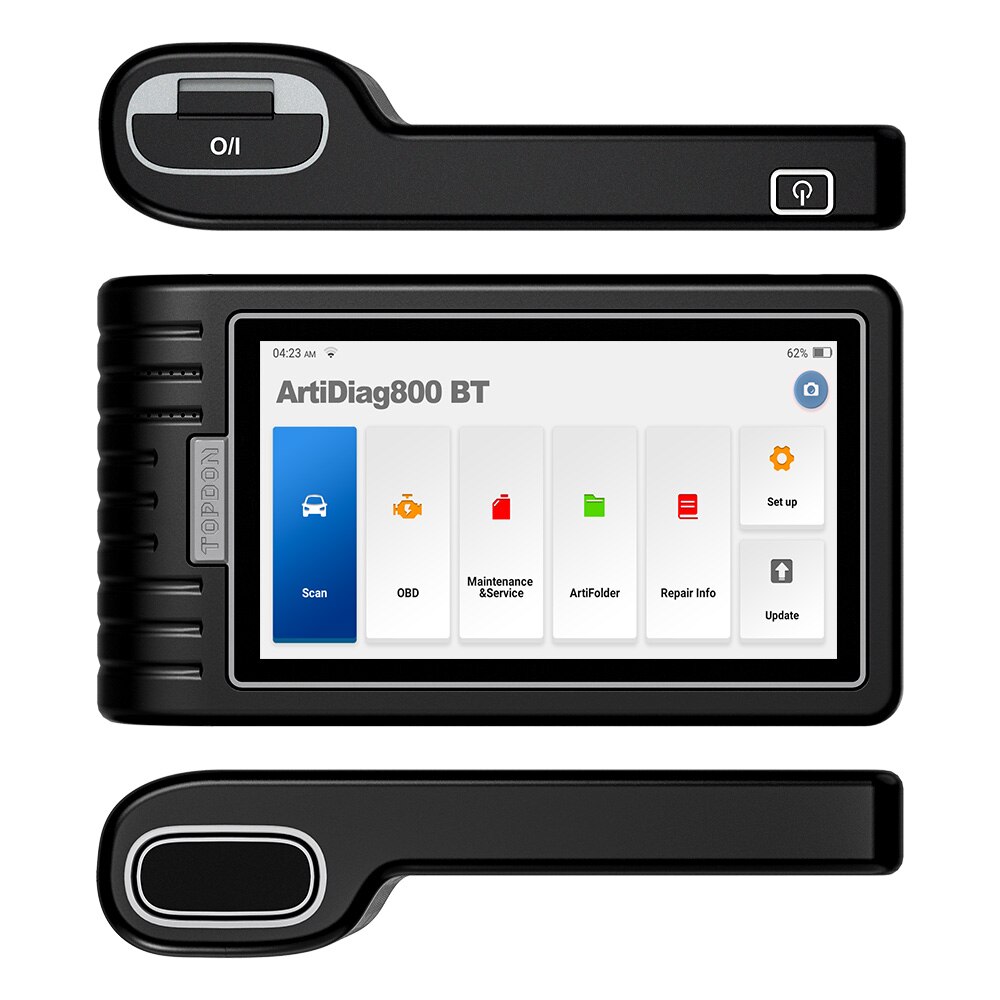

TOPDON ArtiDiag800 BT Car Diagnostic Tool OBD2 Code Reader
€659.00 including 23% VAT Rate
TOPDON Car Diagnostic Tool ArtiDiag800 BT OBD2 Code Reader
Description:
TOPDON ArtiDiag800 BT is a comprehensive automotive diagnostic tool, specially designed for DIY users and mechanics to improve diagnostic and repair efficiency. It supports full OBD2 functions, all systems diagnoses for 96+ vehicle brands, 28 reset functions, AutoVIN, etc. Combined with a 5.99-inch LCD touch screen, 2GB RAM, 16GB ROM, and 3100mAh battery, ArtiDiag800 BT offers maximum convenience and swift diagnosis.
Features:
- lCompatible with 96+ Vehicle Brands, 10000+ Vehicle Models Worldwide;
- lFull OBD2 Functions for Emission Issues;
- lAll Systems Diagnoses for Any System Faults;
- l28 Reset Functions for Fast Maintenance;
- lOne-Click Online Update for Software Update;
- lAUTOSEARCH (AutoVIN)for Smart Diagnosis;
- lOnline Feedbackfor Timely Technical Support;
- lDiagnosticHistory for Data Records;
- lArtiFolder forAllDiagnostic-RelatedData;
- lGraphical Display of Data Stream;
- l5.99-inch LCDTouchScreen;
- l2GB RAM, 16GB ROM;
- l3100mAhBattery
Specification:
Display: 5.99-Inch LCD
RAM: 2GB, ROM 16GB
Battery Capacity: 3100mAh
Storage Temperature: -20°C~ 60°C(-4°F~ 140°F)
Working Temperature: 0°C~ 50°C(32°F~ 122°F)
Dimension: 213*119*49.7mm (8.39*4.69*1.96inch)
Package size:274*188*106mm(10.79*7.40*4.17inch)
Net Weight: 660g(23.28oz)
Smart AutoVIN (AUTOSEARCH)
Basedonthesmart AutoVIN technology, this TOPDON ArtiDiag800 BTwill automatically identify your car and scan the vehicle’s VIN after tappingtheAUTOSEARCH and establishing stable communication.
All-System Diagnoses for a ComprehensiveInspection
TOPDON ArtiDiag800 BT , a system diagnostic tool, can get quick access to all available electronic systems, such as Engine, Transmission, Airbag, ABS, SRS, EPB, Immobilizer, Doors, Air Conditioning, Gateway, etc. and perform a comprehensive scanning on every module to find out any system faults and retrieve DTCs related.
Version Information: read the current version information of ECU;
ReadFaults Code: read DTCsin the ECUmemoryandquickly identify the cause of the vehicle issues;
Clear Fault Code: clear DTCsof the ECU memory of the tested system;
ReadDataStream: read and display the real-time data of ECU in various modes (text, waveform, etc.).
28 Reset FunctionsMeet All Your Needs
TOPDON ArtiDiag800 BT diagnostic scanner provides users with 28 reset functions to do various scheduled maintenance tasks or repairs.
5Commonly-UsedReset Functions save time and money for DIY users:
OilReset,ThrottleMatching, EPB, SuspensionCalibration,andBMS;
Other PowerfulReset Functions greatly improves mechanics work efficiency and cars performance:
SAS, Airbag Reset, Injector Coding, ABS Bleeding, DPFReg., Anti-Theft Matching, TPMS Reset, Gearbox Matching, SunroofInitialization, Coolant Bleed, EGR Adaption, Gear Learning, AFS Headlight Reset, A/F Reset, Seat Calibration, Windows Calibration, Language Set, AdBlue Reset, NOxReset, ODO Calibration, Transport Mode, Tyre Setting, and Stop/Start;
Note: The 28 Reset Functions are not available for all vehicles.
The 28 Reset Functions
1. Oil Reset Service
-Close the oil service light and reset service mileage & service interval after replacing the engine oil.
2. Steering Angle Calibration
-Clear memories of the previous steering angle sensor and store the replaced one.
3. Electronic Parking Brake Reset
-Reset the new electronic parking brake for braking wheels safely again.
4. Battery Register & Battery Maintenance
-Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
5. ABS Bleeding
-Get a firm brake pad after air exhaustion.
6. Electronic Throttle Position Reset & Learn
-Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
7. Diesel Particulate Filter (DPF) Regeneration
-Clear particulate matter from the DPF filter to stabilize the filter performances.
8. Tire Pressure Monitor System Reset
-Relearn TPMS sensors so that new sensors can be recognized by ECU.
9. Tooth Learning
-Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.
10. Anti-Theft Matching (IMMOBILIZER)
– Add a new programmed key. PIN code is required.
11. Injector matching
-Write the new injector numbers into the ECU for accurate communication and injection control.
12. AFS Reset
-It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.
13. EGR Adaption
-Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
14. Gearbox Matching
-Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.
15. Sunroof Service
-Set the sunroof lock switch to be on / off according to weather, temperature, and memory.
16. SUS Reset
-When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.
More Functions
-Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset…
96+ Vehicle Brands, 10000+ Vehicle Models
This OBD2 scanner supports more than 96 vehicle brands worldwide, over 10000 vehicle models, covering European, Asian, American, and Australian vehicle makes and models.
Asia:ACURA, DAEWOO, HONDA, HYUNDAI, INFINITI, KIA, MAZDA, MITSUBISHI, NISSAN, SUBARU, TOYOTA, ISUZU, DAIHATSU, TATA, CHANGAN, CHANGCHENG, CHANGHE, DFXK, FLYER, FUTIAN, GAZ, HAFEI, HUACHEN, IKCO,MAHINDRA,MARUTI, JMC, JACTY, JIAO, JINLONG, JOYLONG, LIFAN, LIUWEI, LUXGEN,PERODUA,PROTON,MAXUS,MVM, PAZ,QIRUI_TY,QOROS,SAICMG,SAIPA,SEAZ,SGM,SSANGYONG,TRUMPCHI,XIALI,XINKAI,ZAZ,ZHONGSHUN,ZHONGTAI,ZHONGXING, etc.
American:CHRYSLER, GM, US-FORD, FIAT (BRAZIL), GM (BRAZIL), DODGE, JEEP, BUICK, CADILLAC, CHEVROLET, etc.
European:ASTON MARTIN, AUDI, BENZ, BMW, FIAT, JAGUAR, LANDROVER, SAAB, SEAT, SKODA, SMART, VOLVO, OPEL, PEUGEOT, DACIA, CITROEN, MINI, PORSCHE, SPRINTER, VW, ALFA ROMEO, VAUXHALL, EU-FORD, FERRARI, IVECO, MASERATI, UAZ, VAZ, BENTLEY, BUGATTI, DR, etc.
Australian:AU-FORD, HOLDEN
Package List
1* Main Unit;
1*BT VCI Dongle(Pre-installed in the Unit);
1* Adapter;
1* Type-C Cable;
1* User Manual;
1* Password Letter;
1* Carry Case
